Build Your Own Elixir Phoenix + LiveView: Step 10: Cowboy Adapter

An educational series based on first principles learning

What We’re Building

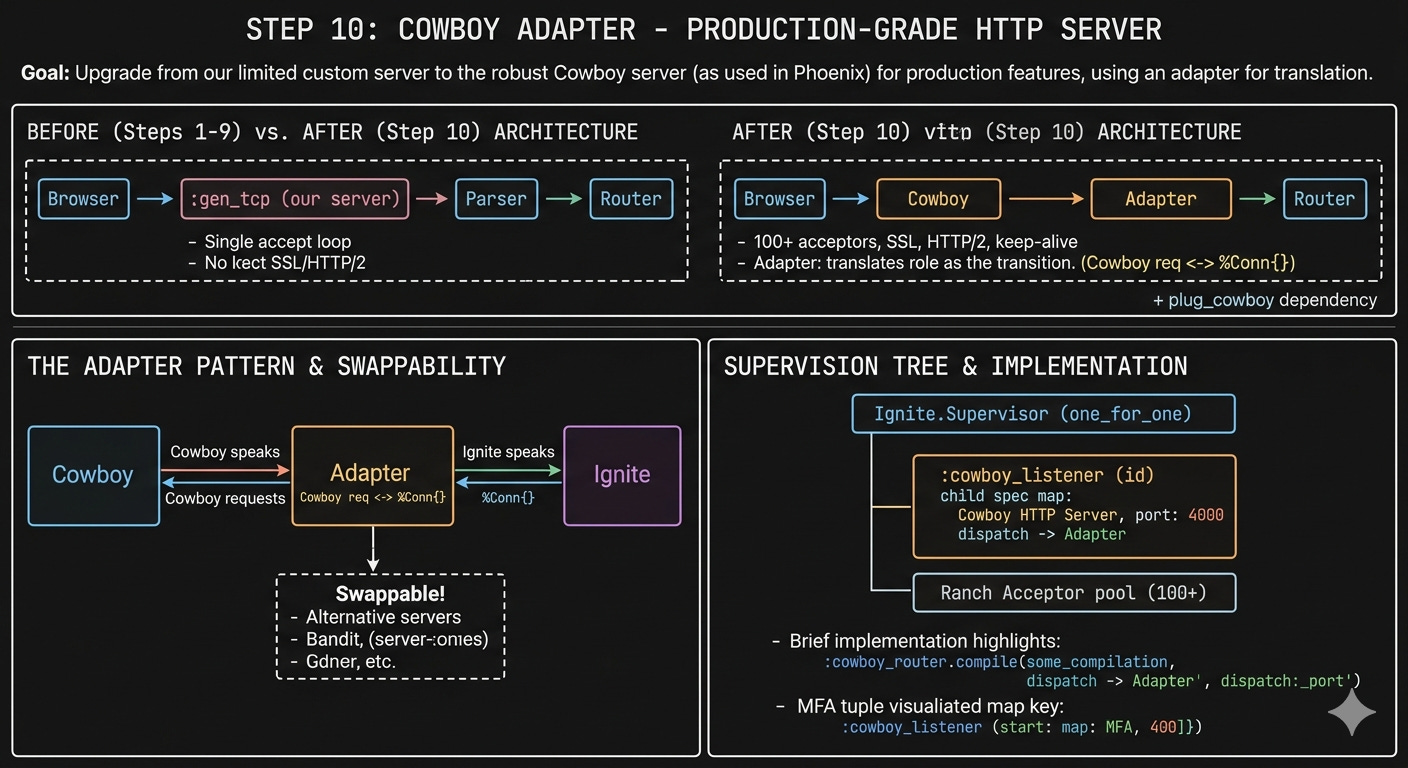

(Image generated from Gemini)

Our hand-built :gen_tcp server works, but it’s missing critical production features:

• HTTP/2 support

• SSL/TLS (HTTPS)

• Keep-alive connections

• Protection against malformed requests and slow-loris attacks

• Connection pooling (multiple acceptors)

Instead of implementing all that ourselves (thousands of lines), we’ll use Cowboy — the same HTTP server Phoenix uses. We’ll write an adapter that translates between Cowboy and our %Ignite.Conn{}.

┌─ Before (Steps 1-9) ─────────────────────────────────────────┐
│                                                              │
│  Browser ──▶ :gen_tcp (our server) ──▶ Parser ──▶ Router     │
│              single accept loop                              │
│              no SSL, no HTTP/2                               │
└──────────────────────────────────────────────────────────────┘

┌─ After (Step 10) ────────────────────────────────────────────┐
│                                                              │
│  Browser ──▶ Cowboy ──▶ Adapter ──▶ Router                   │
│              100+ acceptors   translates                     │
│              SSL, HTTP/2      Cowboy req ←→ %Conn{}          │
│              keep-alive                                      │
└──────────────────────────────────────────────────────────────┘

Concepts You’ll Learn

Dependencies in Mix

Dependencies are declared in mix.exs.

Update mix.exs — add plug_cowboy to the deps/0 function:

defp deps do
  [
    {:plug_cowboy, "~> 2.7"}
  ]
end

Then install them:

mix deps.get

plug_cowboy pulls in Cowboy, Ranch (the TCP acceptor pool), and Plug.

The Adapter Pattern

An adapter translates between two interfaces that don’t know about each other:

Cowboy (speaks Cowboy requests) ←→ Adapter ←→ Ignite (speaks %Conn{})

Our framework doesn’t know Cowboy exists. Cowboy doesn’t know our framework exists. The adapter sits in the middle and translates.

┌───────────┐     ┌─────────────────┐     ┌───────────────┐
│  Cowboy    │     │    Adapter      │     │    Ignite     │
│           ─┼────▶│                 │────▶│               │
│  speaks    │     │  Cowboy req ──▶ │     │  speaks       │
│  Cowboy    │◀────┤  %Conn{}   ◀── │◀────┤  %Conn{}      │
│  requests  │     │                 │     │               │
└───────────┘     └─────────────────┘     └───────────────┘
                         │
                  ┌──────┴──────┐
                  │  Swappable! │
                  │  Bandit,    │
                  │  another    │
                  │  server...  │
                  └─────────────┘

This means we could swap Cowboy for another server (like Bandit) by writing a different adapter — no framework code changes needed.

Cowboy Handler Behaviour

Cowboy calls our module’s init/2 for every request:

@behaviour :cowboy_handler

@impl true
def init(req, state) do
  # req is a Cowboy request map
  # We must return {:ok, req, state}
end

The req object contains method, path, headers, and functions to read the body.

:cowboy_router.compile

Cowboy has its own routing, but we don’t need it — we have our own router. We tell Cowboy to send ALL requests to our adapter:

:cowboy_router.compile([
  {:_, [{"/[...]", Ignite.Adapters.Cowboy, []}]}
])

• :_ matches any hostname

• "/[...]" matches any path

• Everything goes to Ignite.Adapters.Cowboy

:cowboy_req Functions

Cowboy provides helper functions to work with requests:

:cowboy_req.has_body(req)        # Does this request have a body?
:cowboy_req.read_body(req)       # Read the body bytes
:cowboy_req.header("content-type", req, "")  # Get a header
:cowboy_req.reply(200, headers, body, req)   # Send response

@behaviour

@behaviour :cowboy_handler declares that this module implements Cowboy’s handler interface. It’s like implements in Java — the compiler checks that you define the required callbacks. @impl true (from Step 6) marks which functions satisfy the behaviour.

@behaviour :cowboy_handler

@impl true
def init(req, state) do  # Required by :cowboy_handler
  ...
end

Guards (when)

Guards add extra conditions to pattern matching in function heads:

defp parse_body(body, _content_type) when byte_size(body) == 0 do
  %{}
end

The when clause runs after the pattern matches but before the function body executes. Only a limited set of functions are allowed in guards (like byte_size/1, is_binary/1, >, ==).

Child Spec Maps

In Step 6, we used the shorthand {Ignite.Server, 4000} to tell the supervisor what to start. For Cowboy, we need the explicit map format:

%{
  id: :cowboy_listener,              # Unique name for the supervisor
  start: {:cowboy, :start_clear,     # {Module, Function, Args} — called to start the process
           [:ignite_http, [port: 4000], %{env: %{dispatch: dispatch}}]}
}

The start: value is an MFA tuple (Module, Function, Arguments) — the supervisor calls apply(module, function, args) to start the child.

┌─ Supervision Tree ──────────────────────────────────┐
│                                                     │
│            Ignite.Supervisor                        │
│            (one_for_one)                            │
│                  │                                  │
│                  ▼                                  │
│          :cowboy_listener                           │
│          ┌──────────────────────┐                   │
│          │ Cowboy HTTP Server   │                   │
│          │ port: 4000           │                   │
│          │ dispatch ──▶ Adapter │                   │
│          └──────────────────────┘                   │
│                  │                                  │
│          ┌───────┴───────┐                          │
│          ▼               ▼                          │
│     Ranch Acceptor  Ranch Acceptor  ...  (100+)     │
└─────────────────────────────────────────────────────┘

The Code

lib/ignite/adapters/cowboy.ex

Create lib/ignite/adapters/cowboy.ex:

The adapter does three things:

1. Convert Cowboy request → %Ignite.Conn{}

2. Route through MyApp.Router.call/1

3. Reply via :cowboy_req.reply/4

defmodule Ignite.Adapters.Cowboy do
  @moduledoc """
  Bridges Cowboy's request format with Ignite's %Conn{} struct.

  Cowboy calls `init/2` for every HTTP request. We convert the Cowboy
  request into an %Ignite.Conn{}, run it through the router, and send
  the response back through Cowboy.
  """

  @behaviour :cowboy_handler

  require Logger

  @impl true
  def init(req, state) do
    conn = cowboy_to_conn(req)
    conn = MyApp.Router.call(conn)

    req = :cowboy_req.reply(
      conn.status,
      conn.resp_headers,
      conn.resp_body,
      req
    )

    {:ok, req, state}
  end

  defp cowboy_to_conn(req) do
    # Read the body if present (POST/PUT/PATCH)
    {body_params, _req} = read_cowboy_body(req)

    # Convert Cowboy headers (list of tuples) to a map
    headers =
      req.headers
      |> Enum.into(%{}, fn {k, v} -> {String.downcase(k), v} end)

    %Ignite.Conn{
      method: req.method,
      path: req.path,
      headers: headers,
      params: body_params
    }
  end

  defp read_cowboy_body(req) do
    case :cowboy_req.has_body(req) do
      true ->
        {:ok, body, req} = :cowboy_req.read_body(req)
        content_type = :cowboy_req.header("content-type", req, "")
        {parse_body(body, content_type), req}

      false ->
        {%{}, req}
    end
  end

  defp parse_body(body, "application/x-www-form-urlencoded" <> _) do
    URI.decode_query(body)
  end

  defp parse_body(body, _) when byte_size(body) > 0 do
    %{"_body" => body}
  end

  defp parse_body(_, _), do: %{}
end

Cowboy’s req is a map with keys like method, path, and headers. We read the body with :cowboy_req.read_body/1 and reuse the same parse_body logic from Step 9.

Updated lib/ignite/application.ex

Replace lib/ignite/application.ex with: the version below that starts Cowboy instead of our gen_tcp server:

defmodule Ignite.Application do
  @moduledoc """
  The OTP Application for Ignite.

  Starts Cowboy as the HTTP server with our custom handler.
  """

  use Application
  require Logger

  @impl true
  def start(_type, _args) do
    port = Application.get_env(:ignite, :port, 4000)

    # Cowboy routing: send ALL requests to our adapter
    dispatch =
      :cowboy_router.compile([
        {:_, [{"/[...]", Ignite.Adapters.Cowboy, []}]}
      ])

    children = [
      %{
        id: :cowboy_listener,
        start: {:cowboy, :start_clear, [
          :ignite_http,
          [port: port],
          %{env: %{dispatch: dispatch}}
        ]}
      }
    ]

    Logger.info("Ignite is heating up on http://localhost:#{port}")

    opts = [strategy: :one_for_one, name: Ignite.Supervisor]
    Supervisor.start_link(children, opts)
  end
end

What We Keep

• Ignite.Server still exists as a reference for steps 1-9

• Ignite.Parser is no longer used (Cowboy parses for us)

• The Router, Controller, and Conn are unchanged — the adapter handles the translation

How It Works

Browser                    Cowboy                    Ignite
   |                         |                        |
   |--- HTTP request ------->|                        |
   |                         | Acceptor pool (100+)   |
   |                         | Parse HTTP             |
   |                         |                        |
   |                         |-- init(req, state) --->|
   |                         |                        | cowboy_to_conn(req)
   |                         |                        | Router.call(conn)
   |                         |                        | Controller action
   |                         |<- {:ok, req, state} ---|
   |                         |                        |
   |<-- HTTP response -------|                        |

Cowboy handles:

• 100+ acceptors (vs our single accept loop)

• HTTP protocol compliance

• Connection timeouts

• Malformed request rejection

Try It Out

1. Install the dependency:

mix deps.get

2. Start the server:

iex -S mix

3. All your routes still work:

   • http://localhost:4000/ → “Welcome to Ignite!”

   • http://localhost:4000/users/42 → User profile page

   • http://localhost:4000/hello → “Hello from the Controller!”

4. Test POST:

curl -X POST http://localhost:4000/users \
     -d "username=jose"

5. The behavior is identical, but now you have a production-grade HTTP server underneath.

File Checklist

All files in the project after completing Step 10:

File → Status
mix.exs → Modified — added plug_cowboy dependency
mix.lock → New — auto-generated by mix deps.getlib/ignite.ex → Unchanged
lib/ignite/application.ex → Modified — starts Cowboy instead of Ignite.Server
lib/ignite/server.ex → Unchanged (kept as reference, no longer started)
lib/ignite/conn.ex → Unchanged
lib/ignite/parser.ex → Unchanged (no longer used; Cowboy handles parsing)
lib/ignite/router.exUnchangedlib/ignite/controller.exUnchangedlib/ignite/adapters/cowboy.ex → New — adapter translating Cowboy requests to Ignite.Conn{}
lib/my_app/router.ex → Unchanged
lib/my_app/controllers/welcome_controller.ex → Unchanged
lib/my_app/controllers/user_controller.ex → Unchanged
templates/profile.html.eex → Unchanged

What’s Next

What happens when a controller crashes? Right now, Cowboy returns a generic error. In Step 11, we’ll add an Error Handler that catches exceptions and returns a friendly 500 page with a logged stacktrace.

---

← Previous: Step 9 - POST Body Parser | Next: Step 11 - Error Handler →
